Medlock™ | Ultra HD

Description

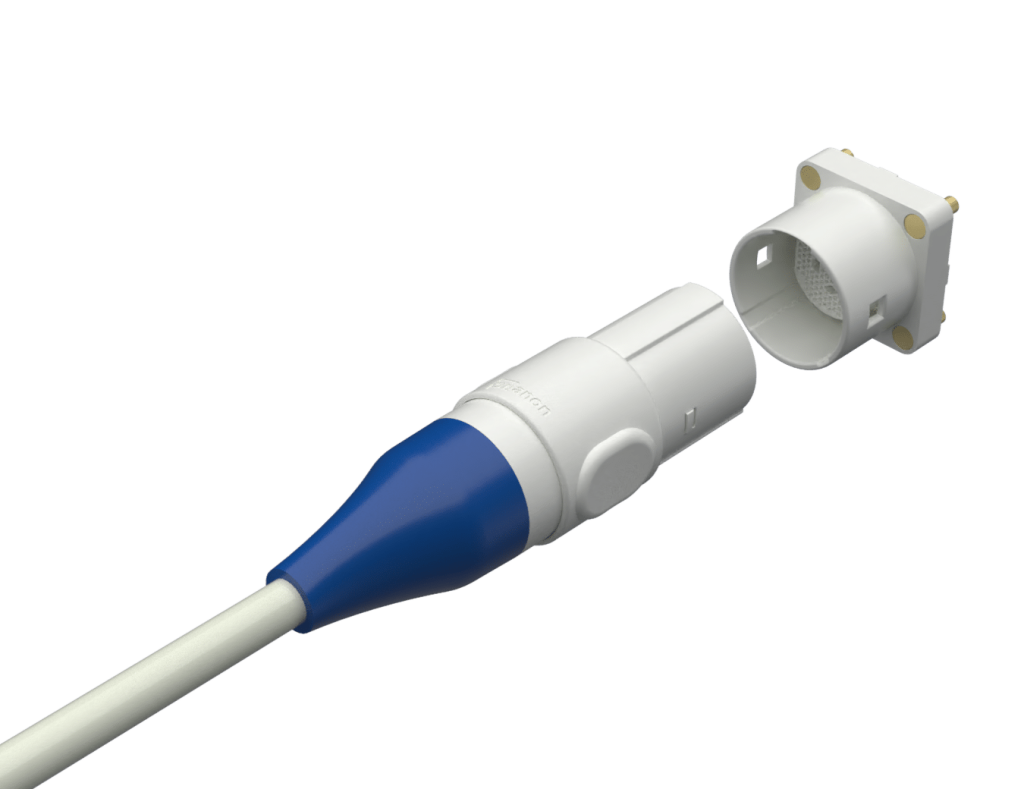

MedLock™ | Ultra HD is Onanon’s most advanced high-density interconnect solution, engineered with 146 contacts for medical applications such as electro-surgical and diagnostic catheters. Designed with a compact push-pull mating system, MedLock™ | Ultra HD ensures secure, effortless coupling during critical procedures. This connector is ideal for both reusable and disposable markets, offering maximum customization in material, cable type, and color.
  • 146-pin capacity
  • Push-pull mating
  • Rated at 1A and 250VDC
  • IP4X ingress protection
  • Reusable and disposable options available
  • Autoclavable configurations upon request
  • Fully customizable to match OEM device requirements

Resources

Item Resources

3D Reference CAD
  • Receptacle Assembly
  • Plug Assembly
