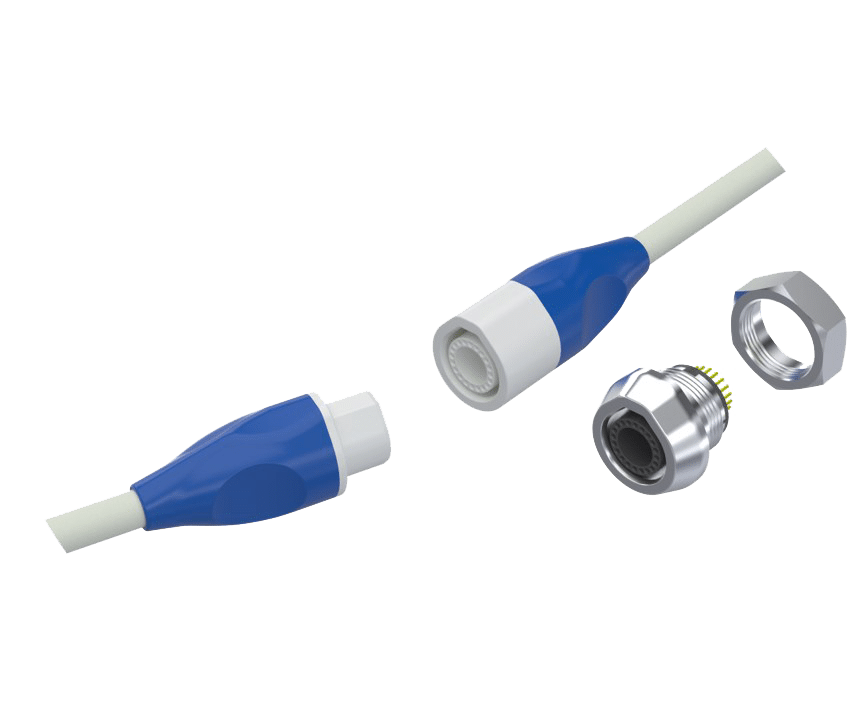

MagConnect® | Echo

Description

Onanon’s MagConnect ® | Echo is performance engineered to be the most intuitive interconnect in the world. Its unique magnetic safety latch feature is ideal for medical applications, where time, precision, and quality are most critical. Additional suitable markets include but are not limited to the automotive, aerospace and industrial industries. MagConnect® series has been used in applications with low & high voltages, sensitive EMI, shock & vibration environments, and integration of intelligent electronics.
  • 2 to 20 pin capacity
  • Intuitive and self-mating
  • Magnetic safety de-latching
  • Customizable for reusable or single use applications
  • Easily add components such as EEPROMs, resistors and capacitors
  • EMI/RFI Safe
  • Low (<12v) & High (>5000v) Voltage Safe
  • Rugged use in outdoor wearables
  • VF/HF/RF Safe

Pricing

Distributor SKU Description Stock Min Pkg Currency 1 10 100 Updated
Digikey 234-A002 MagConnect® | Echo Receptacle 52 1 Each USD 86.810 73.791 62.737 Dec 3, 2025
Digikey 234-A001-20S-U280-W MagConnect® | Echo Plug Kit 0 1 Each USD 48.260 41.021 34.874 Dec 3, 2025
Mouser 234-A002 MagConnect® | Echo Receptacle 0 1 Each USD 86.800 73.790 62.730 Dec 3, 2025
Mouser 234-A001 MagConnect® | Echo Plug Kit 0 1 Each USD 48.250 41.020 34.870 Dec 3, 2025

Resources

Item Resources

3D Reference CAD
  • Plug Assembly
  • Plug Receptacle Assembly
